Summit 18” Wide Beverage Center, 3.2 cu.ft. Capacity, Stainless Steel & Glass- CL181WBV

SPECIFICATIONS Overview Height of Cabinet 34.0" (86 cm) Width 17.5" (44 cm) Depth 23.5" (60 cm) Depth with Handle 25.38" (64 cm) Depth with door at 90° 39.63" (101 cm) Capacity 2.9 cu.ft. (82 L) Defrost Type Automatic Door Glass Cabinet Black US Electrical Safety ETL Canadian Electrical Safety ETL-C Sanitation ETL-S Energy Usage/Year 255.0kWh/year Amps 1.0 Voltage/Frequency 115 V AC/60 Hz Weight 88.0 lbs. (40 kg) Shipping Weight 100.0 lbs. (45 kg) Parts & Labor Warranty 1 Year Compressor Warranty 5 Years UPC 761101053462 Refrigerator Features Sabbath Mode Yes Door Swing Reversible Reversible Yes Shelf Type Glass Shelf Qty 3 Adjustable Shelves Yes Thermostat Type Digital Fan Type Interior and Exterior Refrigerant Type R600a Refrigerant Amount 0.85oz. High Side PSI 270.0 Low Side PSI 105.0 Interior Light Yes Temperature Range 36 to 43ºF Dimensions Interior Height 23.0" (58 cm) Interior Width 12.25" (31 cm) Interior Depth 17.5" (44 cm) Compressor Step Height 3.25" (8 cm) Compressor Step Width 12.25" (31 cm) Compressor Step Depth 5.25" (13 cm) AVAILABLE UPGRADES Exterior LHD - Left hand door swing Door reversal to left hand swing Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. Door T1 Door Tint Tinted door in low-E mirror finish for maximum energy savings T2 Door Tint Tinted door in reflective deep blue finish with high energy savings T3 Door Tint Reflective door tint in light blue finish for medium energy savings T4 Door Tint Neutral door tint in light smoke finish for moderate energy savings T1S Door Tint Reflective door tint in dark smoke finish for maximum energy savings FEATURES Built-in capable Make the best use of space by installing your appliance under the counter Double pane tempered glass door Heat-safe glass ensures your items are stored safely Seamless stainless steel trim One-piece stainless steel door frame offers a luxurious look with no exposed seams or holes Digital thermostat Electronic controls for precise temperature management Digital display Temperature readout can be shown in Celsius or Fahrenheit Adjustable glass shelves Spill-proof glass shelves make it easy to store and display bottles and cans Bottle slots Floor is specially slotted to store wine and other bottles safely in place White LED lighting Unique white lighting located inside the walls offers elegant illumination for the jet black interior Professional handle Vertically mounted handle in brushed stainless steel Reversible door User-reversible door swing allows for more flexibility in placing the unit Stainless steel kickplate Completes the professional look down to the toe kick Sabbath Mode Optional setting lets you disable the lighting and alarm for up to 48 hours Temperature alarm Audibly alerts if the interior temperature is too warm Open door alarm Audible alarm will sound if the door is left ajar for over 60 seconds Fan-forced cooling Internal fan ensures the interior is evenly cooled from top to bottom Automatic defrost Reduced maintenance and steady temperature performance Sealed back Space saving design with easier cleanability Temperature Memory Function Unit will retain its last settings when power is restored in the event of power loss Right angle plug Design allows you to plug the unit in flush against the wall socket with no need to add extra depth Fully finished black cabinet Allows the unit to be used freestanding Integrated hinge Top hinge adds no additional height or width when the door is opened Commercially approved ETL-S listed to NSF-7 standards 100% CFC Free Environmentally friendly design with no ozone-damaging chemicals CARB Compliant Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations DESCRIPTION The SUMMIT Classic Collection features deluxe undercounter appliances designed to bring modern luxury into the home. The CL181WBV is an 18" wide beverage center. The front breathing design allows built-in installation under counters, while the fully finished cabinet in a jet black finish also enables freestanding use. The seamless stainless steel door trim blends right into the softly tinted double pane tempered glass, with a professional stainless steel handle and designer kickplate completing the stunning look. Inside, white LED lighting located on the side walls complements the black interior for an attractive presentation. The CL181WBV includes three adjustable glass shelves for spill-proof storage. The floor is specially slotted to hold wine bottles in place. The interior control panel includes a digital thermostat for easy and intuitive operation, with a readout viewable in Celsius or Fahrenheit. Additional features include a user-reversible door, right angle plug for added space savings, sealed back design for easier cleanup, and a Sabbath mode setting. A built-in alarm audibly warns if the door is left ajar or if the unit exceeds recommended temperature. Uniquely styled and fully featured, the CL181WBV brings true luxury to small kitchen spaces. DOWNLOADS BROCHURE w/ DRAWINGS CL181WBV.pdf TECHNICAL DRAWING (.dwg) CL181WBV_BEVERAGE_REF__A-C_2000_.dwg USE & CARE CL181WBV_Manual_3-29-2019.pdf MSDS INFORMATION R600a_K.pdf

• Perfect space for drinks at home or your business: This unit is ETL-S listed to NSF-7 and meets UL-471 commercial standards but also meets residential standards. The front-breathing design allows built-in installation or freestanding use. Digital thermostat offers electronic controls and digital display.

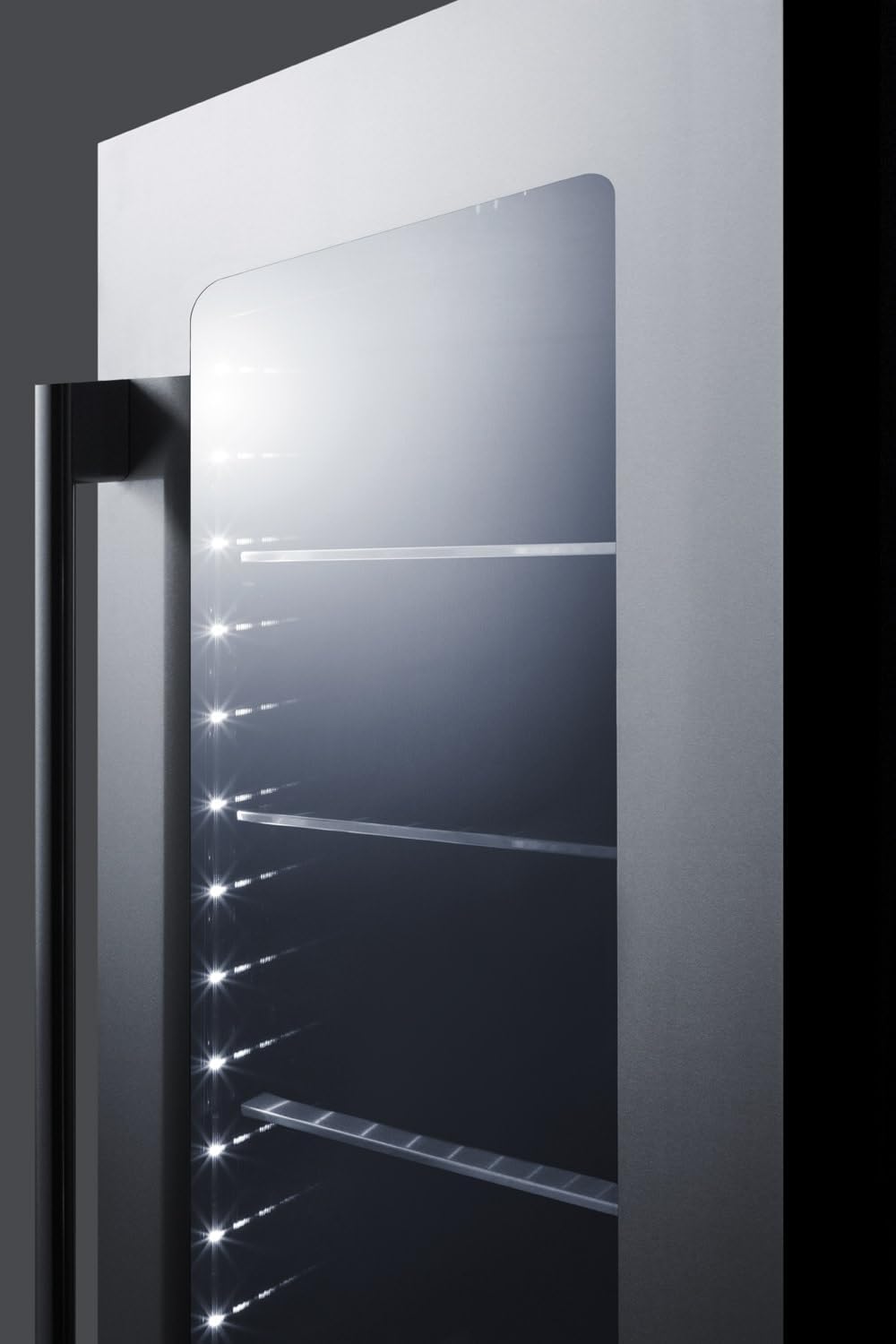

• A modern look with timeless quality: The user-reversible slightly tinted glass door features a seamless stainless steel door trim and handle. Three easy to clean glass shelves for flexible storage and a slotted floor to hold bottles in place.
• The features you want: A temperature alarm sounds should the temperature go beyond the setpoint. The optional Sabbath Mode can be used to disable certain electrical features during periods of religious observance. Automatic defrost system keeps the unit running efficiently with easy maintenance.
• Dimensions & Build: 33.75" H x 17.5" W x 22.75" D, Capacity 3.2 cu.ft. (91 L).
