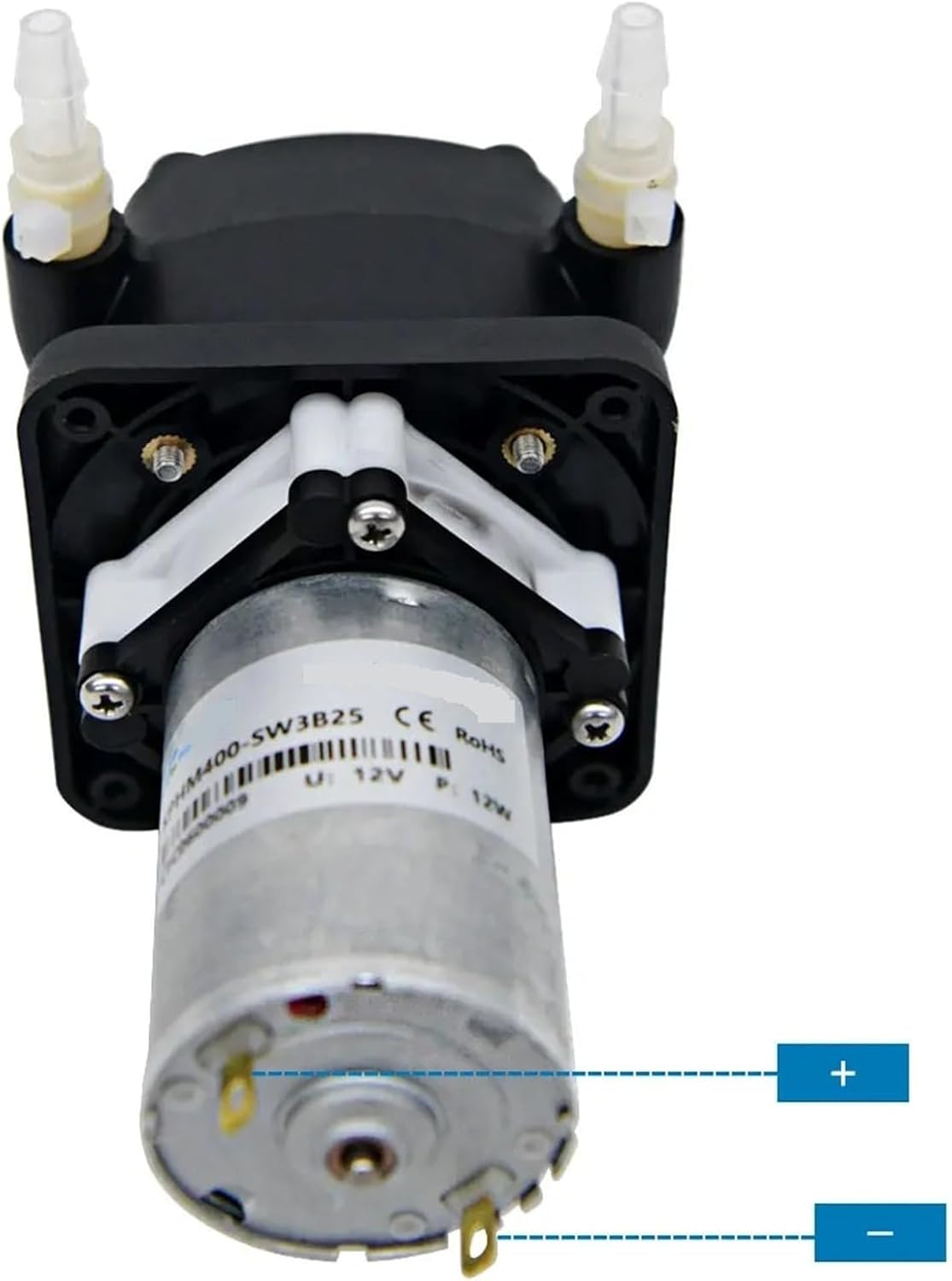

KPHM400 KPHM200 200~400ml/min Peristaltic Pump 12V 24V DC Motor High Flow Self-priming Pump 1Pcs(Brush(12V),KPHM200-B16)

Dosing PumpsXCorresponding Instructions for Brushless Motor Five-wire1. The positive pole of the red wire power supply, the negative pole of the black wire power supply, the white wire speed control wire, the yellow wire signal feedback wire (to measure the speed) Green line reversing line (floating to reverse, connect to the negative pole of the power supply for positive rotation).2. Speed control port: PWM and 0-5V two speed control methods, the speed control range is 13%-100% PWM frequency 10KHZ-30KHZ; Amplitude: 5V, duty cycle 0-10% motor does not rotate, 11%-100% speed regulation range; 0-5V voltage speed regulation, 0-0.5V motor does not rotate, 0.6V-5V speed regulation interval.3. Yellow wire speed feedback, connect to oscilloscope probe or host computer. 1 pulse/revolution.4. Running at full speed, the red wire and white wire are connected to the positive power supply, and the black wire is connected to the negativeApplication : MeteringTheory : Rotary PumpStructure : Peristaltic PumpModel Number : KPHM serie Standard or Nonstandard : StandardPressure : Low PressureUsage : WaterFuel : ElectricPower (W) : ElectricPeristaltic Pump Motor : DC motorPeristaltic Pump Voltage : 12V/24VPeristaltic Pump Flow rate : 200~400ml/min low flowRoller : 3 rollersWorking Temperature : 0-40Humidity : Less than 80%Feature : for viscous and non-viscous liquid transportPump head material : Nylon
